Supported Models:
- AVC-NAxxxxx
- AVC-NCxxxxx
- AVC-NUxxxxx
- AVC-NPB81F180
- AVC-NPE81F180
- AVC-NPE81F2D

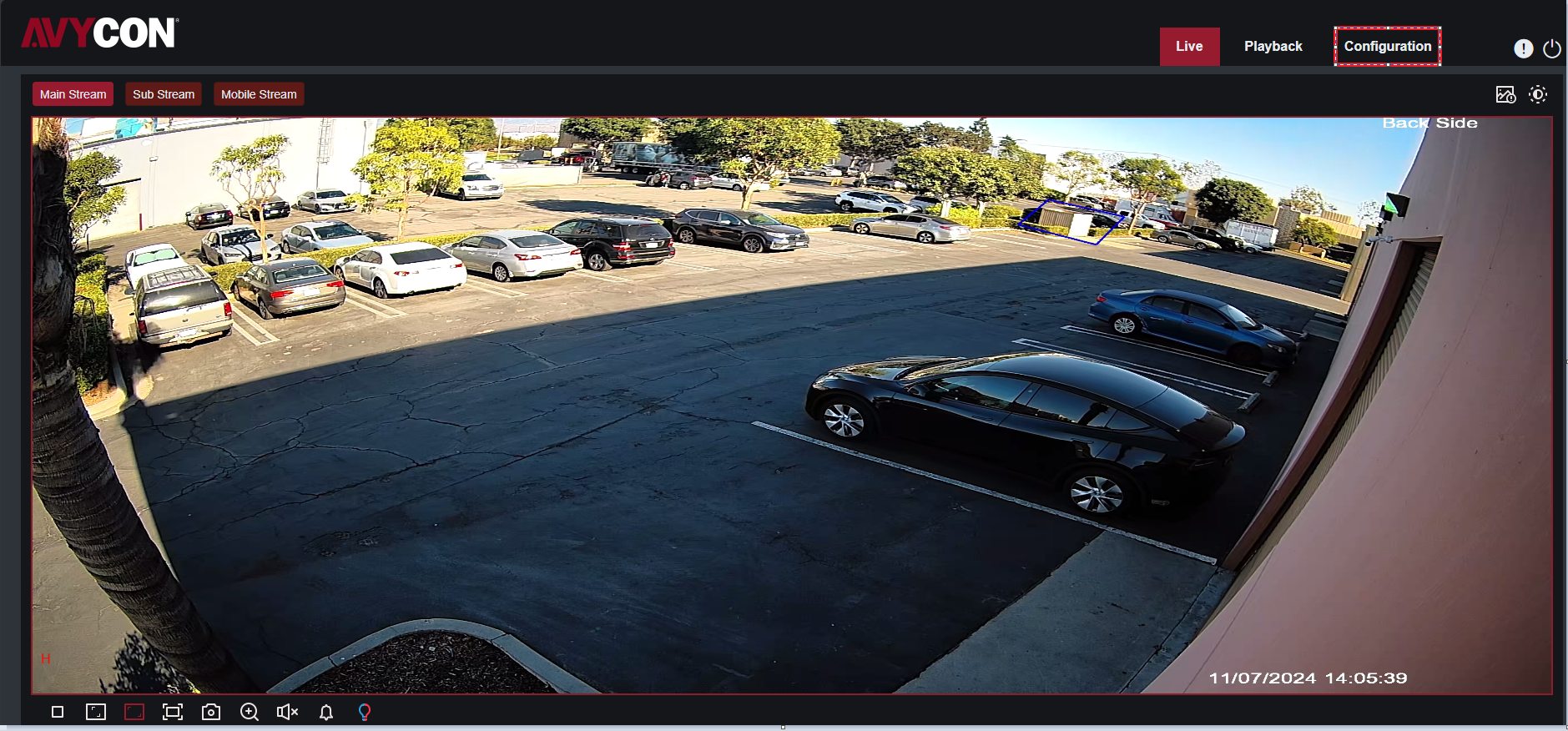

Navigate to Configuration

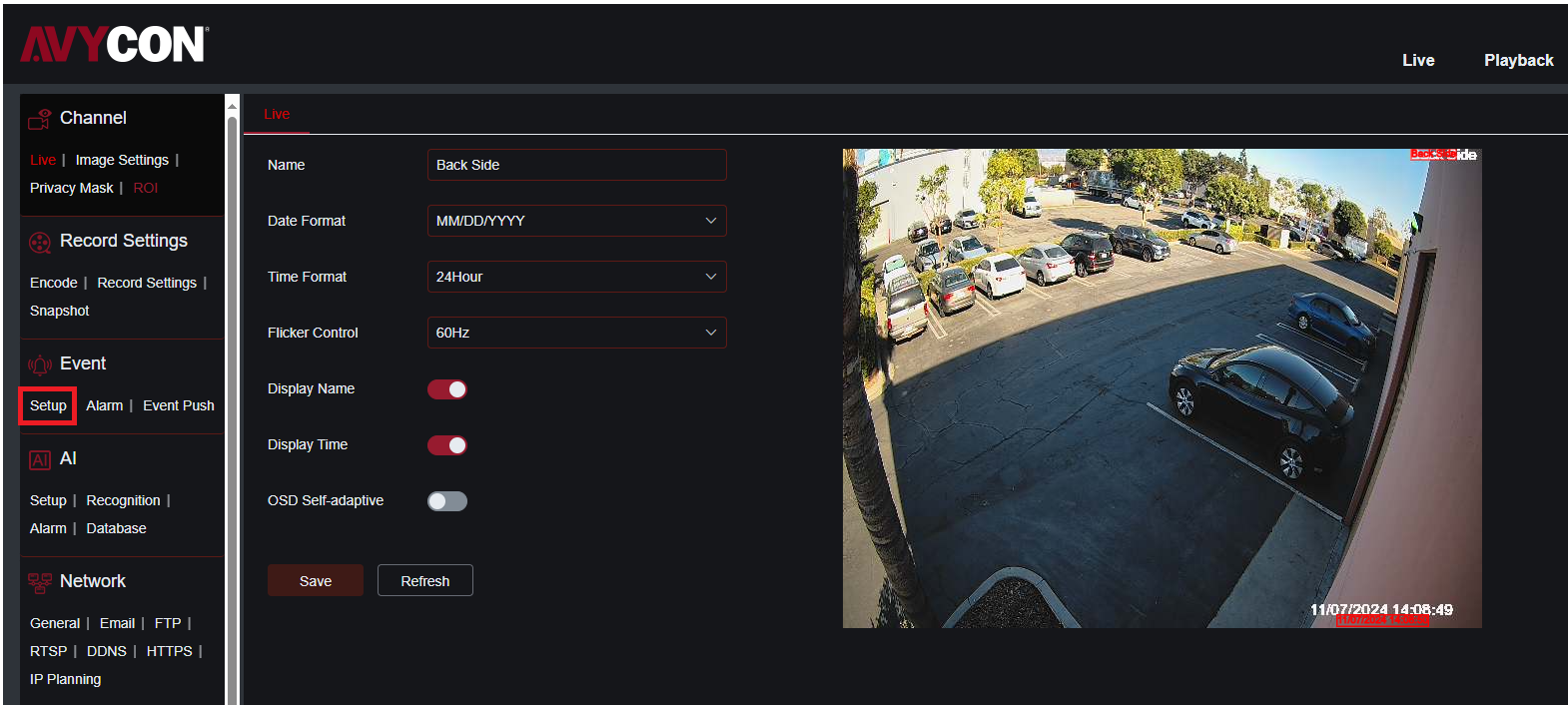

Click on Setup under Event

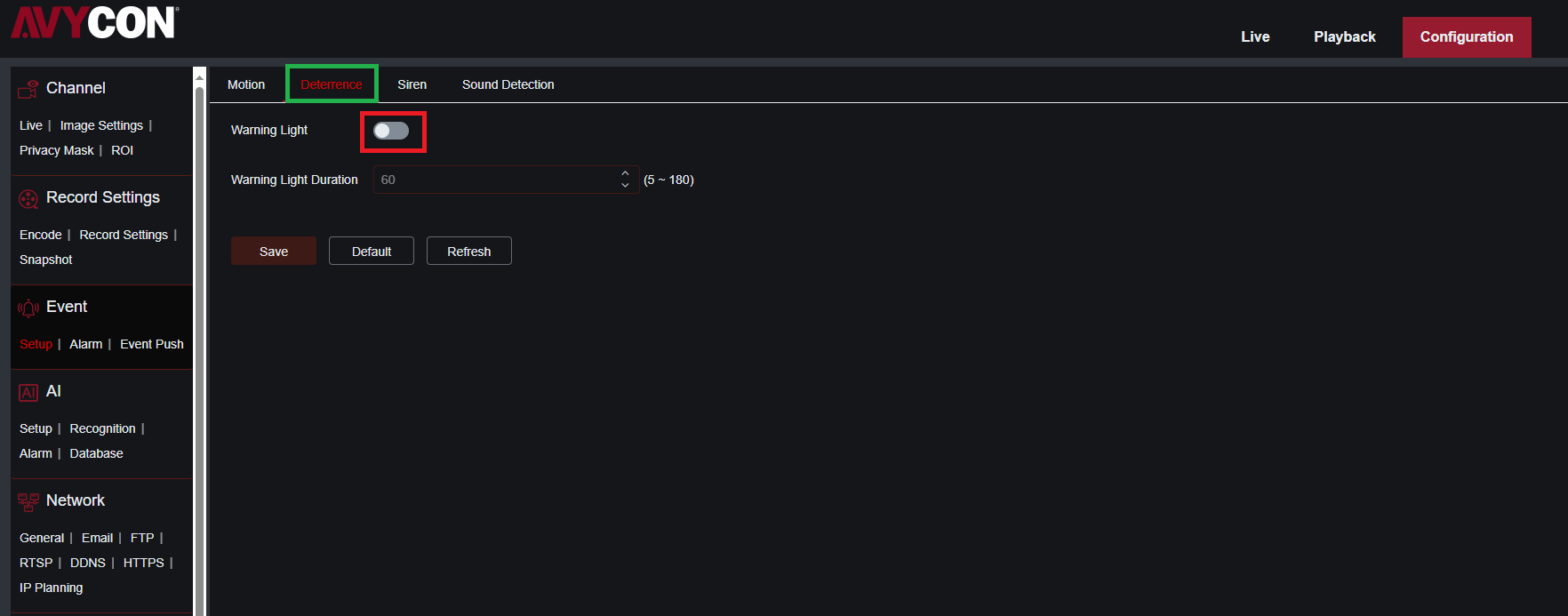

Click on the Deterrence tap to enable Warning Light.
Warning Light Duration: How long you want the Warning Light to be on.

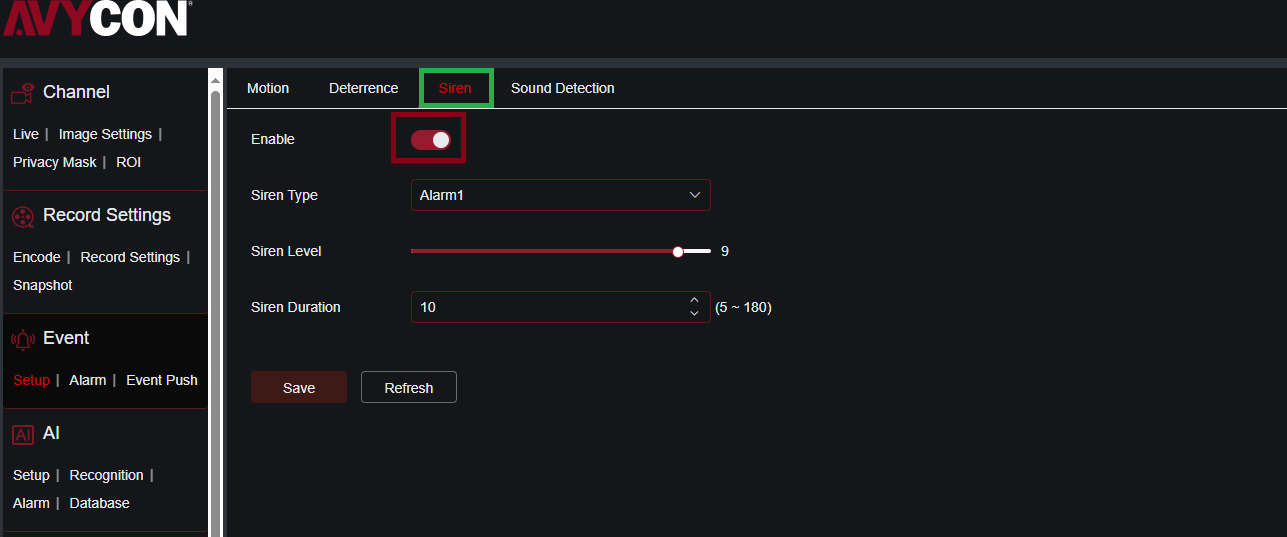

Click on the Siren tap to enable Siren Audio Output
Siren Type: Select which audio file you wanted to use
- File formats: .wav or .pcm
- Size: No larger than 256 KB
- Sampling Rate: 8 kHz
Siren Level: Siren volume level
Siren Duration: How long you want siren to play

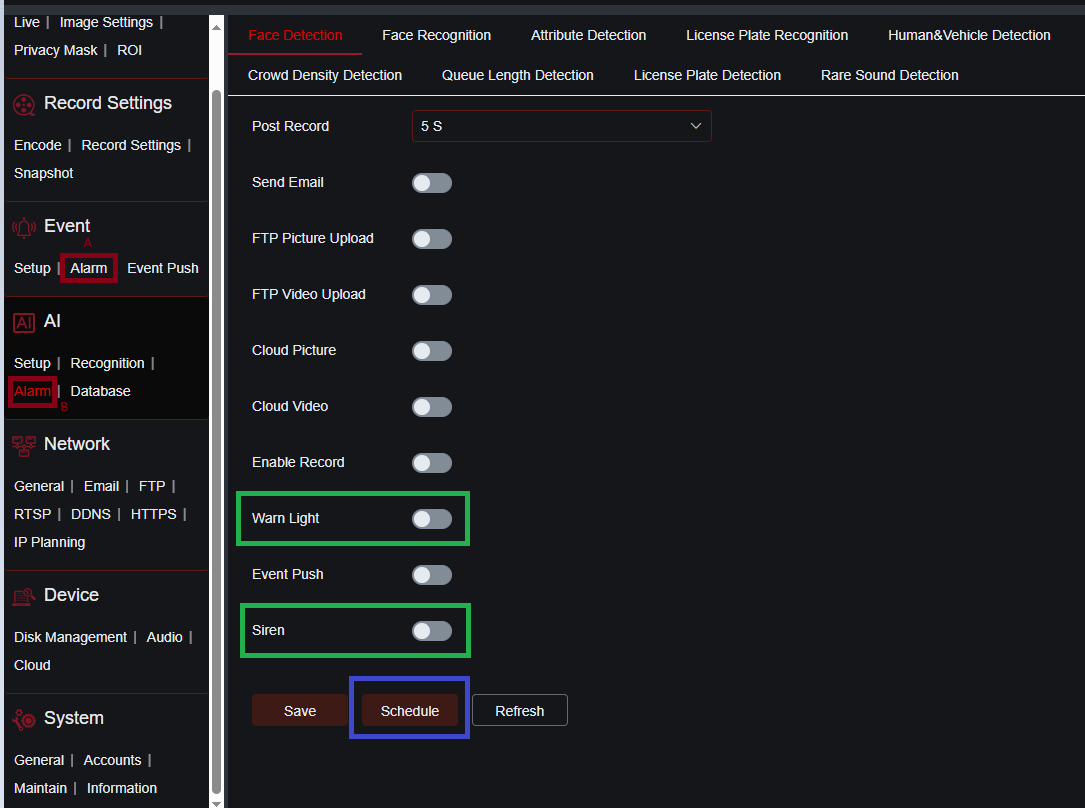

You can set Warning Light or Siren for different event by clicking on Alarm A for Motion or Alarm B for AI event.
Toggle on Warn Light for Warning Light, and Siren for Siren.

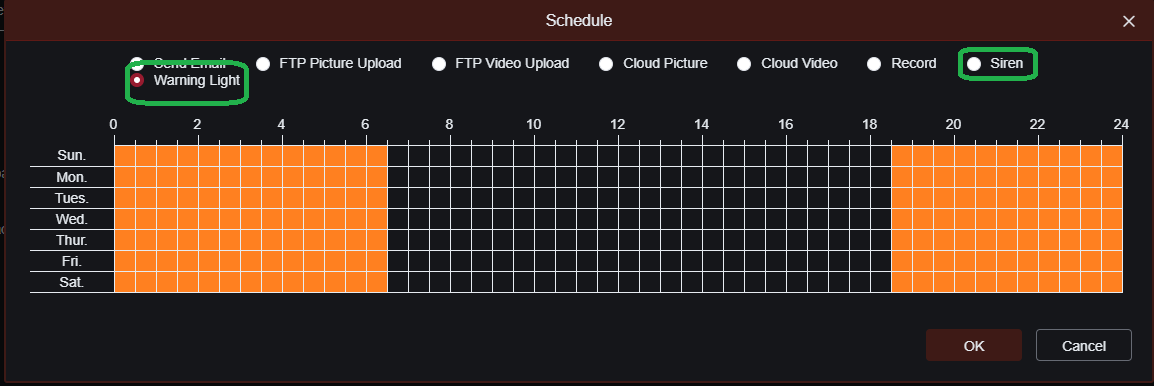

Click on schedule to set a time frame on when Deterrence is trigger
Orange Box: Time Frame on when it triggers
Black Box: Time Frame on when it will not trigger
Click and drag to select or deselect.
