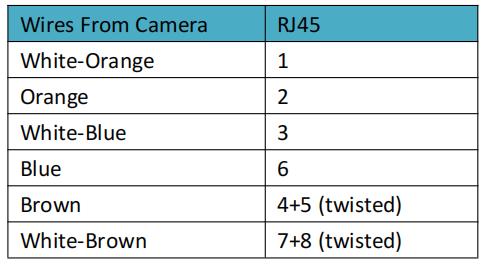

Below is the RJ45 wiring schema/diagram for our Autotracking and Panoramic 180° IP Cameras, which applies to the following cameras:


AVC-LHN21SVT-A1S

AVC-LHN51SVT-A1S

AVC-NP51F180

AVC-NVP51F180

AVC-NVP81F180

AVC-NPTZ21X12L

AVC-NPTZ21X23L

AVC-NPTZ21X30L

AVC-NPTZ51X12L

AVC-NPTZ51X23L

AVC-NPTZ51X30L

AVC-NPTZ51X42L

AVC-NPTZ81X36L

AVC-PHN121FLT


Models with Alarm Input/Output



Models with Audio Input/Output



Please be advised that any modifications or alterations made to the pigtails/wiring of the camera will void the warranty.
